BLUEPRINT ENGINES FORD 302CI CRATE ENGINE - 361HP BP302RCT

Made in the USA
 BENEFITS

Complete Assembly Ready For Installation
361 Horsepower & 334ftlbs Of Torque
Brand New High-Strength Cast Iron Block
50oz External Balance Rotating Assembly
 FEATURES

Aluminum Cylinder Heads
Cast Steel Crank
4-Bolt Mains
9.4:1 Compression Ratio
 WHAT'S IN THE BOX

(1) Long Block Assembly

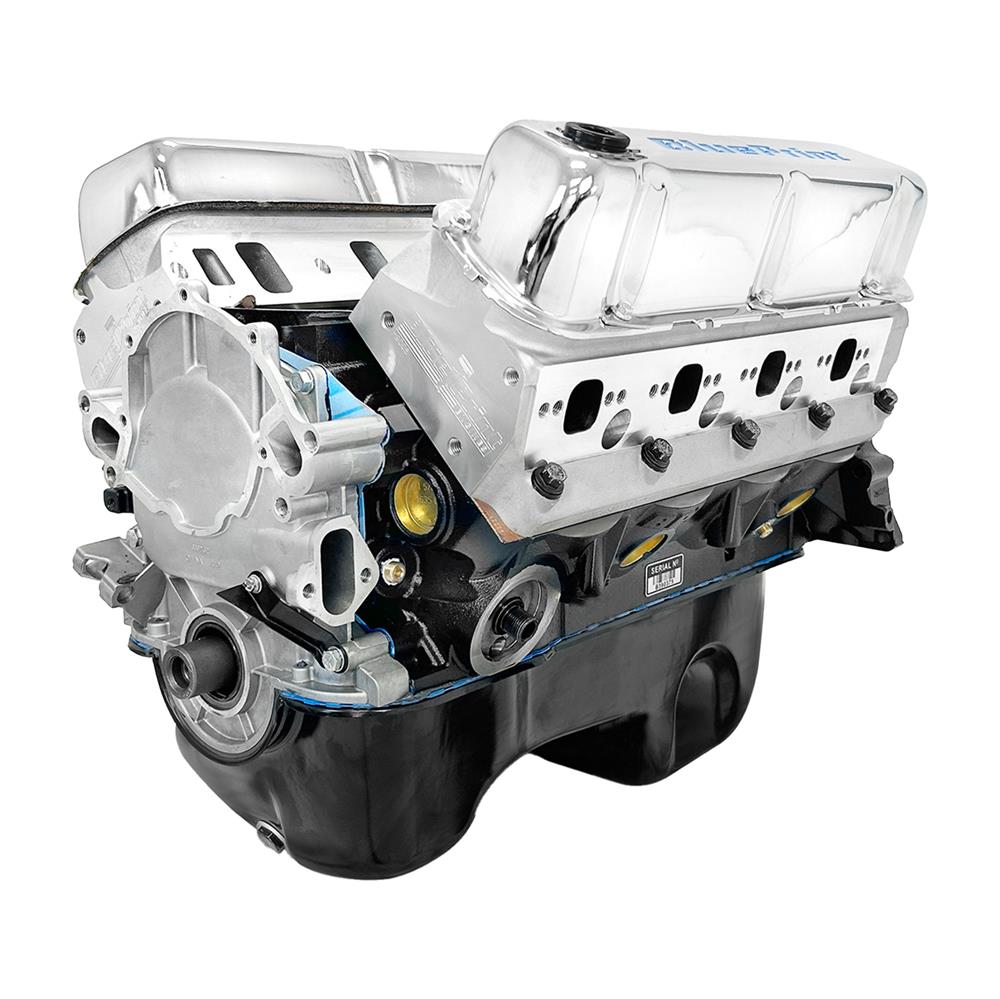

BluePrint Engines 302ci - 361hp 5.0 Long Block Crate Engine
361hp out of 302ci engine is a great motor to swap into your project vehicle with this BluePrint Engines crate motor. If you don't want to spend time searching for the right parts for your build, pick up this BluePrint Engines crate motor and save time and money on your project. Whether you are building a street cruiser or a track monster, this crate motor will hold up to either. This engine comes ready for you to bolt on your choice of accessories, intake manifold, headers, and transmission to get the best combination for more horsepower and torque. This crate engine is a factory 50oz balanced rotating assembly. It comes assembled with a brand new Blueprint Engines high-strength cast iron block, HP9008 aluminum cylinder heads, a hydraulic roller cam, dual sump oil pan, a timing cover, dipstick, and a set of polished valve covers to top it off. Making up to 16 inches of vacuum and is designed to work excellently with power brakes, stock torque converter, and stock gearing on 87 octane fuel. Blueprint crate engines come with a 30-month/50k-mile warranty at no extra cost for great peace of mind. Extend your engine's warranty to 48-month/Unlimited miles using the following link - BluePrint Engine Extended Warranty

Brand New Short Block
With the rarity of an unmodified stock block to remanufacture, Blueprint went out and made their own brand-new high-strength blocks! The robust short block has an Increased deck thickness and strengthening webbing throughout, making it far superior to the original Windsor-based 302. Improved water jacket designs for more efficient cooling and better coolant flow. Utilizing stronger 4 bolt mains with a 3.00" stroke cast steel crank, OEM type 5.090" connecting rods, hypereutectic pistons round out the rotating assembly and keep the stock 302ci displacement. With a compression ratio of 9:4:1 making 361 horsepower straight out of the box!

Cylinder Heads & Cam
Equipped with Blueprints custom ground hydraulic roller camshaft to give you the extra power you need! This performance camshaft has a 215/220 duration and a .533/.544 lift with a 114-degree lobe separation to add a good amount of low-end torque. This hydraulic camshaft is preinstalled in this motor to save you time when building your ride. BluePrint HP9008 190cc aluminum cylinder heads feature a 60cc combustion chamber with a 2.02" intake and 1.60" exhaust valves. Large 190cc intake and 60cc exhaust runners will have more than enough flow to make all the power you could need. Factory-style stamped rockers, and a double roller timing chain ensure a long life with minimal valvetrain maintenance.

Engine Specs:
HP & Torque: 361 HP / 334 FT LBS
Compression Ratio: 9.4:1
NEW BluePrint Engines' high-strength cast iron block
Increased deck thickness and strength webbing
Priority main oiling
4-bolt main
1-piece rear main seal
Improved water jacket design
3.000" Stroke Cast Steel Crank
OEM type 5.090" connecting rods
Hypereutectic pistons
50oz External balance
BluePrint Aluminum Cylinder Heads - HP9008
60cc chamber
2.02" intake
1.60" exhaust valves
190cc intake
60cc exhaust runners
Pedestal Mount Rockers
Stamped Steel Rocker
Hydraulic Roller Cam
.533 Intake / .544 Exhaust
215 Intake / 220 Exhaust Duration
@ .050 – 114-Degree Lobe Separation
Includes Rear Sump Oil Pan
Dipstick & Tube
Includes Valve Covers
Includes Timing Cover
Product Note:
Complete your crate motor with this LMR Engine Finishing Kit

This product is intended for off-road use only, and is not legal for use in emission restrictive states. Off-Road Disclaimer
